1325 Single Head CNC Router Wood Cutting Machine Engraving Machine

Product Usage
Engraving machine: used in woodworking, advertising, and mold industries.
Woodworking: three-dimensional corrugated board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors,screen, craft window processing, shoe polishing machine, game machine cabinet and panel, mahjong,auxiliary processing of tables, computer desks and panel furniture products.
Advertising: signs, logo production, acrylic cutting, blister molding, various materials
Production of advertising decoration products.
Mold: can engrave woodworking, non-metallic molds such as plastic boards, PVC pipes, wooden boards, etc.

Model:
ZY-1325

Availability:

Quantity:



Inquire Add to Basket

CNC Router Wood Cutting Machine Engraving Machine CNC Router Wood Wood Engraving Machine CNC Router Machine

Product Description

Features

1.Cooling spindle or air cooling spindle, using well-known brand electrical components, fast and powerful spindle motor, high precision and high efficiency.

2.Vacuum adsorption table:the engraving process is stable and smooth, with good adsorption.Make the cut material smoother and the engraved pattern more delicate.

3.Oil lubrication system, manual/automatic oiling system, easy to operate, the machine works smoothly.

4.High-precision linear square rail, large transmission power, long life, stable operation, and ensure a constant transmission ratio.

5.The control system uses well-known brand electrical components, accurate parameter setting, simple operation, and stable quality effect.

6.The heavy-duty body structure is welded with thick steel plates, and it will not deform when carrying heavy objects.

7.Crawler guide rail avoids the trajectory from deviating from the track and improves the accuracy and reliability of the machine. When the machine is running, it effectively reduces the energy loss caused by friction and vibration, thereby saving energy and reducing operating costs.

Paramenters

Name	1325 Single Head CNC Router Machine	Working speed	18000mm/min
Bed Material	Welded large steel pipe	Spindle power	JST 3.2KW water cooling
Material weight	1000KGS	Frequency converter	3.7KW FULING
Table size	1300*2500mm	Spindle speed	0-24000rmp
Work area	13002500200mm	Motor	Leadshine 860 step motor
Table Surface	T-slot table	Operating Voltage	AC380V220V50Hz
Engraving accuracy	0.02-0.03mm	Oil System	Manal oil system
Repeatability	+0.01mm	Run command	G code
XYZ transmission	XY helical rack drive,Z screw drive	Operating system	NC studio
Guide	HIWIN20 square rail	Support software	Type 3,ArtcamJD.

Effect

1325-Single-Head-CNC-Router-Effect（5）

Details

1325-Single-Head-CNC-Router-Detail（1）

Cooling spindle

Cooling spindle or air cooling spindle, using well-knownbrand electrical components, fast and powerful spindlemotor, high precision and high efficiency.

1325-Single-Head-CNC-Router-Detail（2）

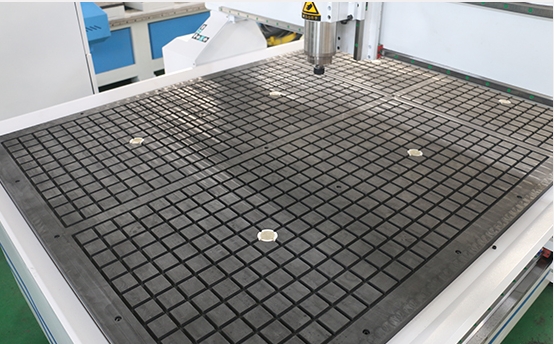

Vacuum adsorption table

The engraving process is stable and smooth, with good

adsorption.Make the cut material smoother and the engraved patternmore delicate.

1325-Single-Head-CNC-Router-Detail（3）

High-precision square rail

High-precision linear square rail, high transmissionpower, long life, stable operation, and ensure aconstant transmission ratio.

1325-Single-Head-CNC-Router-Detail（4）

Control system

The control system uses well-knon brand electricalcomponents, accurate parameter setting, simpleoperation, and stable quality effect.

1325-Single-Head-CNC-Router-Detail（5）

High-precision guide rail

Crawler guide rail avoids the trajectory from deviatingfrom the track and improves the accuracy and reliabilityof the machine. when the machine is running, iteffectively reduces the energy loss caused by frictionand vibration.

1325-Single-Head-CNC-Router-Detail（6）

Bed structure

The heavy-duty body structure is welded with thicksteel plates and will not deform when carryingheavy objects.
