| Quantity: | |
|---|---|
1.Dual motor pre-milling: improve the accuracy and quality of edge banding.
2.Profiling tracking design: adapt to the edge banding requirements of different boards.
3.Rotatable touch screen: one-key parameter switching, intuitive operation.
4.Automatic feeding device: side plate structure, conveying speed up to 20 meters per minute.
5.Whole aluminum profile pressure beam: no welding, high precision, beautiful and generous.
6.Dual diamond knife pre-milling: improve the flatness of the board milling and extend the service life.
7.Three-in-one fast melt glue box: compatible with PUR and EVA glue, easy to operate.
8.Multi-pass pressing unit: ensure that the board and edge banding fit tightly.
9.Quick head and tail: improve production efficiency and accuracy.
10.Trimming unit: combination of rough trimming and fine trimming to ensure smooth edge banding.
11.Up and down purge design: effectively remove excess glue lines and debris.
1.Efficient production: high conveying speed and automated operation improve production efficiency.
2.Versatility: suitable for a variety of panels and edge banding materials.
3.High precision: pre-milling and contour tracking ensure edge banding quality.
4.Easy operation: intuitive touch screen and automated functions simplify the operation process.
5.Durability: high-quality materials and precision design improve equipment durability.
6.Flexibility: supports the processing of panels of different thicknesses and widths.
7.Stability: well-known electrical component brands provide stable operation.
8.Cost savings: reduce material waste and automatically record production quantities.
9.Easy maintenance: design considers maintenance convenience and reduces maintenance costs.
Thickness of edge band | 0.4-3mm | Polishing motor | 0.55kw×4/1400rpm |
Board thickness | 9-55mm | Cartridge heater | 2kw |
Conveying speed | 16、18、20 meters/minute | Tracking chamfering motor | 0.37kw×2 frequency conversion speed 18000rpm |
Conveying motor | 3.7Kw40 axis | Auxiliary heating | 0.15kw |
Glue box motor | 0.55kw | Electric lift motor | 0.37kw |
Front and rear flush motor | 0.37kw×2 frequency conversion speed regulation 12000rpm | Total power | 16.5kw |
Upper and lower roughing motor | 0.55kw×2 frequency conversion speed regulation 18000rpm | Overall dimension | 6910×830×1600mm |
Upper and lower finishing motor | 0.55kw×2 frequency conversion speed 18000rpm | Pre-milling motor | 2.2kw/2 |
Pre-milling-Automatic gluing-Automatic tape feeding-Automatic belt breaking-Six-pass belt pressing-End cutting-Rough trimming up and down-Fine trimming up and down-Tracking corner rounding-Scraping up and down-Up and down blowing-Polishing (4 units)
wooden and aluminum plates simpleand convenient conversion
Three-in-one fast melt glue box
PUR can be used(can be connected to a two-color.
PUR glue machine, or EVA can be used No-clean glue pot.
Pressing unit
5 sets of steel wheel pressing1 set of leather wheel pressing.
Conveying unit
The transmission plate is a side plate structure More stable and firm.
Up and down blowing function
No edge strip debris easy to clean the surface of the plate.
Two sets of tracking corner rounding

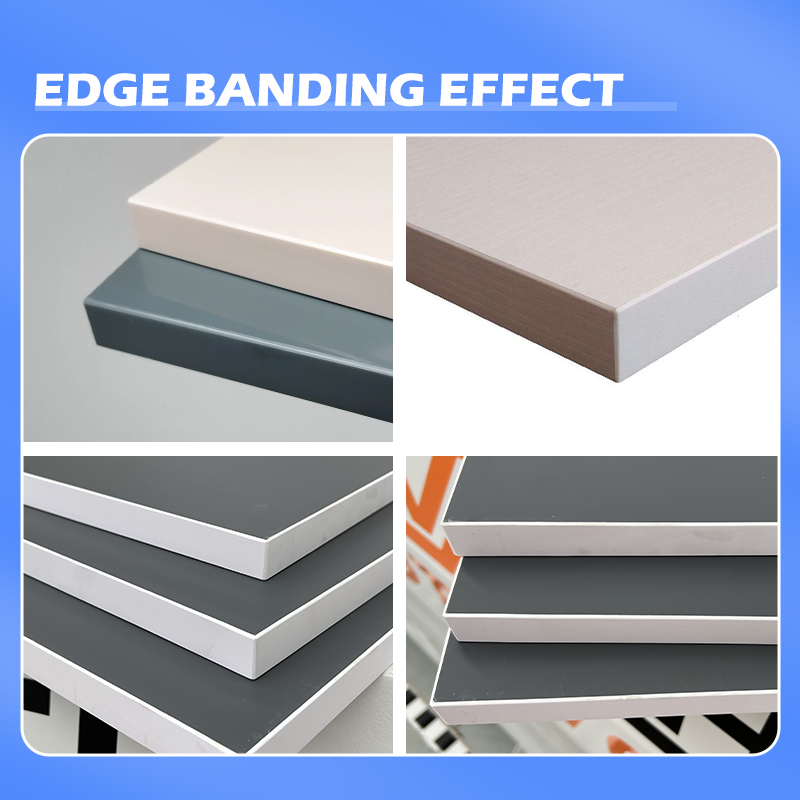

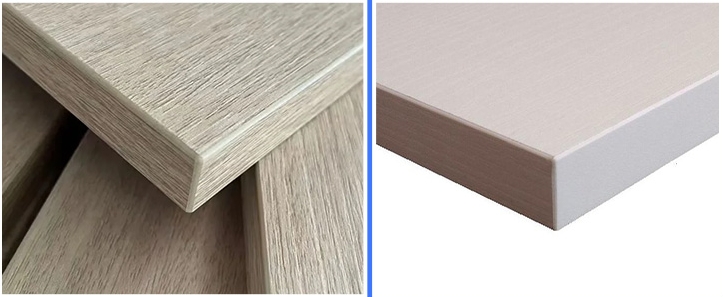

The edge banding board is smooth and beautiful with good texture.
