Woodworking joints are the backbone of any carpentry project. Choosing the right joint can make or break your work. In this post, we'll explore rabbet, dado, and groove joints. You'll learn their differences, applications, and how tools like the Mortise and Tenon Machine play a role. Discover which joint best suits your woodworking needs.
A rabbet joint is a simple yet effective woodworking joint. It features an L-shaped cut along the edge or end of a board. This cut creates a recess or step, allowing another piece of wood to fit snugly into it. Unlike dado or groove joints that are cut across or along the surface, rabbets are always on the edge, making them open on two sides—one shoulder and one bottom.
Rabbets can run either with the grain or across it. When cut across the grain, they are often used for drawer construction. When cut with the grain, they serve well for backing on furniture like bookcases or cabinets. This versatility makes rabbets a popular choice in many woodworking projects.
Rabbet joints are widely used because they simplify assembly and provide decent strength, especially when reinforced with glue or fasteners. Here are some common applications:
Drawer Construction: Rabbets allow drawer sides to fit neatly into the front or back pieces, ensuring square corners and smooth operation.
Cabinet and Frame Backing: They create a recess to insert backing panels, hiding edges and providing a clean finish.
Picture and Mirror Frames: Rabbets form the groove where glass, artwork, or mirrors sit securely.
Box and Case Assemblies: They help align edges and add strength without complicated joinery.
Because rabbets expose one side of the joint, they tend to be less strong than dado or groove joints but are easier to cut and assemble.
Creating a rabbet joint can be done with many tools, depending on your workshop setup and the precision required:
Router with Rabbet Bit: A router fitted with a rabbet bit is one of the fastest ways to cut rabbets. The bit’s bearing guides along the edge, producing a clean, consistent cut. Using interchangeable bearings allows different rabbet widths without changing bits.
Table Saw with Dado Blade: Setting a dado blade on a table saw lets you cut rabbets by adjusting the blade height and fence position. Adding a sacrificial fence protects your saw and ensures a clean shoulder.
Handheld Router with Edge Guide: For larger panels or awkward pieces, a handheld router with an edge guide offers flexibility. The guide keeps the cut straight, and using a downcut or compression bit reduces tear-out.
Rabbet Plane: For traditional woodworking, a rabbet plane allows precise manual cuts. It’s ideal for fine adjustments or small rabbets.
Chisel and Saw: In the absence of power tools, marking the rabbet carefully and cutting with a hand saw and chisel can achieve good results, though it requires more skill and time.
Tips for making rabbets:
Always measure and mark carefully before cutting.
Use a test piece to adjust your tool settings.
Clean up the cut with sandpaper or a chisel for a tight fit.
By mastering rabbet joints and the tools to create them, you add a versatile and essential technique to your woodworking skills. They’re perfect for many projects where edge joining is needed, combining simplicity with functionality.
A dado joint is a square-bottomed slot cut straight across the grain of a board. Unlike rabbets, which are cut along the edge, dados are cut into the face of the wood, creating a three-sided channel. This channel fully encloses the inserted piece on three sides — two shoulders and a bottom — offering a strong mechanical connection.
Dado joints are commonly used to join shelves, partitions, or dividers into cabinet sides or bookcases. Because they run across the grain, dados provide excellent resistance to lateral forces, making the joint stable and durable. They can be either through dados, which run completely across the board, or stopped dados, which stop before reaching the edge, hiding the joint from view.
Dado joints are a go-to choice for many woodworking projects that require strong, hidden connections. Some common uses include:
Bookshelves and Cabinet Shelves: Dados hold shelves securely in place inside the cabinet walls, preventing sagging or movement.
Sideboards and Partitions: They help create internal dividers that fit snugly into the main frame.
Drawer Dividers: Dados are perfect for fitting internal drawer compartments without visible fasteners.
Table Tops and Furniture: Sometimes dados are used to secure tabletop panels or structural supports.
Because the dado fully encloses the mating piece, it offers superior strength compared to rabbets, especially when combined with glue or mechanical fasteners.
Cutting a dado requires precision to ensure a tight fit. Several tools and methods can be used, each with its own advantages:
Table Saw with Dado Blade: This is the fastest and most accurate way to cut dados. A dado blade set lets you adjust the width to match the thickness of the piece being inserted. By setting the blade height and fence position, you can cut a clean, square slot in one pass.
Router with Straight Bit: A handheld router or router table can also create dados. Using a straight or spiral bit, you make multiple passes to reach the desired width and depth. Edge guides or fences help maintain straight cuts.
Hand Saw and Chisel: For traditional woodworking or when power tools aren’t available, you can mark the dado carefully, saw the shoulders, and chisel out the waste. This method takes more time and skill but can yield precise results.
Dado Jig: Some woodworkers use specialized jigs for routers or table saws to improve accuracy and repeatability when cutting dados.
Tips for making great dado joints:
Always measure and mark the exact position of the dado before cutting.
Use test pieces to fine-tune your tool settings.
Ensure the dado width matches the thickness of the inserted piece for a snug fit.
Clean up the dado bottom and shoulders with a chisel or sandpaper if needed.
Mastering dado joints adds a powerful technique to your woodworking skillset. It allows you to create strong, neat joints that are perfect for shelves, cabinets, and many other projects.
A groove joint is a channel cut along the grain of a wood piece. Unlike dado joints, which run across the grain, grooves follow the wood fibers. This channel has three sides—two shoulders and a bottom—fully enclosing the inserted piece on three sides. The groove’s shape is similar to a dado but oriented differently.
Grooves often run the entire length of the board or stop partway, depending on the design. They create a strong, stable connection and can accommodate panels, splines, or other insertions. Because grooves are cut along the grain, they tend to have less risk of splitting and maintain the wood’s natural strength.
Groove joints are popular in projects requiring long, narrow slots along a board’s surface. Common uses include:
Tongue-and-Groove Paneling: This classic joint allows boards to fit tightly side by side, perfect for walls, ceilings, flooring, and tabletops.
Cabinet Backs and Doors: Grooves hold backing panels or door inserts securely, hiding edges and providing a clean look.
Box and Case Construction: Grooves can accept splines or panels, adding rigidity and alignment without visible fasteners.
Drawer Bottoms: Grooves hold the drawer bottom panel firmly in place, preventing movement or rattling.
Decorative Inlays: Grooves provide channels for inserting ornamental strips or contrasting woods.
Their ability to hold panels firmly and neatly makes grooves a versatile joinery choice, especially when a smooth, flush surface is desired.
Several tools and techniques can create grooves, each suited to different workshop setups and project needs:
Table Saw with Dado Blade: Set the dado blade to the groove’s width and adjust the fence for position. This method is fast and precise, ideal for long, straight grooves. Use a sacrificial fence to protect your saw and ensure clean shoulders.
Router with Straight or Spiral Bit: A handheld router or router table can cut grooves by making multiple passes until the desired width and depth are reached. Edge guides or fences keep cuts straight. Downcut or compression bits reduce tear-out on the top surface.
Handheld Circular Saw with Multiple Passes: For large boards or on-site work, a circular saw can cut groove shoulders. Then, use a chisel or router plane to clean out the waste. Accuracy depends on careful marking and steady hands.
Router Plane: For fine woodworking or shallow grooves, a router plane allows controlled, precise cuts. It's perfect for small adjustments or stopped grooves.
Hand Saw and Chisel: Traditionalists can mark groove boundaries and carefully saw and chisel out the channel. This method requires patience and skill but yields excellent results.
Tips for cutting grooves:
Measure and mark precisely before cutting.
Use test pieces to dial in tool settings.
Choose the right bit or blade width to match the mating piece.
Clean up shoulders and bottom with chisels or sandpaper for a tight fit.
Mastering groove joints opens new possibilities in woodworking. They combine strength, neatness, and flexibility, making them ideal for paneling, cabinetry, and decorative work. Try different tools and methods to find what works best for your projects.
Rabbet, dado, and groove joints may seem alike at first glance. However, their position and shape set them apart.
Rabbet: An L-shaped cut along the edge of a board. It’s open on two sides—one shoulder and a bottom. It can run across or with the grain but always sits on the edge.
Dado: A square-bottomed channel cut across the grain on the face of a board. It fully encloses the inserted piece on three sides—two shoulders and a bottom.
Groove: Similar to a dado but cut along the grain. It also encloses the inserted piece on three sides.
In short, rabbets are edge joints open on two sides, while dados and grooves are face joints enclosed on three sides. This distinction affects strength, application, and how you cut them.
Because dados and grooves have two shoulders holding the mating piece, they offer more mechanical strength than rabbets. The three-sided enclosure resists twisting and lateral forces better.
Rabbets rely on one shoulder and the bottom, so they are generally weaker. They often need glue or fasteners to reinforce the joint.
Here’s a simple comparison table:
| Joint Type | Enclosure | Strength | Typical Use |
|---|---|---|---|
| Rabbet | 2 sides | Moderate | Drawer fronts, frames, backing |
| Dado | 3 sides | High | Shelves, partitions, dividers |
| Groove | 3 sides | High | Paneling, drawer bottoms, doors |
If your project demands durability and load-bearing capacity, dados or grooves are the better choice. For simpler or decorative joints, rabbets work well.
Selecting the right joint depends on your project needs, wood type, and tools available.
Use rabbets when joining edges where moderate strength suffices and ease of cutting matters. For example, attaching backing panels or drawer fronts.
Use dados for strong, load-bearing joints like shelves in bookcases or cabinet dividers. They prevent sagging and provide neat alignment.
Use grooves when you need a long, narrow channel along the grain. Ideal for tongue-and-groove paneling, drawer bottoms, or door panels.
Consider also the visibility of the joint. Stopped rabbets or dados hide the joint ends, offering a cleaner look.
Cutting rabbets, dados, and grooves accurately is key to strong, clean woodworking joints. Luckily, many tools and methods exist for these cuts, from power tools to hand tools. Let’s explore the most popular options and how to use them effectively.

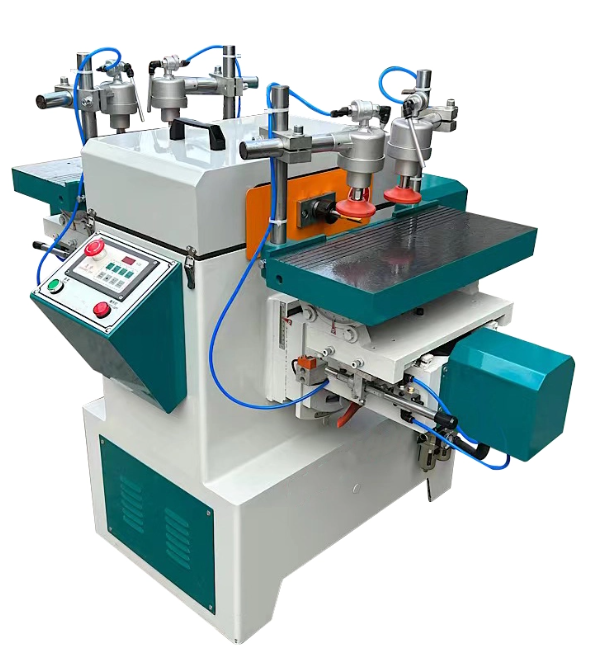

Though primarily designed for mortise and tenon joints, some mortising machines can be adapted to cut grooves or dados. They offer excellent precision and repeatability, especially for stopped or centered slots.
Advantages: Precise depth control, clean straight cuts, ideal for repetitive cuts.
Limitations: Less common for rabbets, limited to smaller widths unless multiple passes are made.
Tip: Use appropriate chisels and bits designed for your machine to avoid tear-out.
The table saw is a versatile powerhouse for rabbets, dados, and grooves. With the right blade setup and fence adjustments, it can produce fast, accurate cuts.
Regular Blade: Cut shoulders first, then remove waste with multiple passes. This method works without a dado blade but takes more time.
Dado Blade Set: A stacked dado blade lets you cut wide, flat-bottomed slots in one pass. Adjust width using chippers and shims to fit your mating piece perfectly.
Sacrificial Fence: When cutting rabbets against the fence, attach a sacrificial fence piece to protect your saw’s fence and get cleaner edges.
Crosscut Sled or Rip Fence: Use a sled for crosscut dados or the rip fence for rip cuts. Both help keep cuts square and safe.
Example: To cut a dado for a shelf, set your dado blade to the shelf thickness, adjust height for depth, and run your board along the fence.
Routers excel at precision and versatility, especially for grooves and rabbets near edges or in large panels.
Handheld Router: Use with a straight or rabbeting bit. Edge guides or custom jigs keep cuts straight. Ideal for grooves or rabbets close to edges.
Router Table: Offers more control and stability. Fence and stop blocks help make repeatable cuts. Great for stopped grooves or dados.
Bit Selection: Compression bits or downcut spiral bits reduce tear-out and produce cleaner edges.
Multiple Passes: For wider grooves or dados, make several passes adjusting fence or bit offset each time.
Router Plane: For fine tuning or shallow grooves, a router plane allows controlled, smooth cuts by hand.
Circular Saw: Can cut grooves or rabbets by making parallel passes, but requires careful layout and cleanup with chisels.
Hand Saw and Chisel: Traditional method for those without power tools. Mark carefully, saw shoulders, and chisel waste. It’s slow but precise.
Jigs and Guides: Use shop-made jigs to improve accuracy with handheld tools.
| Tool | Best For | Pros | Cons |
|---|---|---|---|
| Mortise and Tenon Machine | Precise stopped grooves/dados | Accuracy, repeatability | Limited width, less common |
| Table Saw + Dado Blade | Fast dados, rabbets, grooves | Speed, accuracy | Requires setup, safety care |
| Handheld Router | Edge grooves, rabbets | Versatile, portable | Needs guides for straight cuts |
| Router Table | Repeatable grooves/dados | Control, clean cuts | Limited board size |
| Circular Saw | Rough cuts on large panels | Portable, accessible | Requires cleanup |
| Hand Saw + Chisel | Fine, detailed work | No power tools needed | Time-consuming |
Rabbets, dados, and grooves each offer unique benefits for woodworking, with varying strengths and applications. Choosing the right joint depends on the project's needs and available tools. Experimenting with different techniques enhances skills and results. Shandong Zhongyuan Machinery Co., Ltd. provides machinery that simplifies these processes, offering precision and efficiency for woodworkers. Their products deliver value by streamlining joint cutting, making them an excellent choice for woodworking professionals seeking reliability and quality.
A: A rabbet joint is an L-shaped cut along the edge or end of a board, creating a recess for another piece to fit into.
A: A dado joint is cut across the grain on a board's face, while a groove joint runs along the grain, both enclosing the inserted piece on three sides.
A: Tools include routers, table saws, rabbet planes, and chisels.
A: Dado and groove joints are stronger due to their three-sided enclosure, offering superior mechanical strength.
