DO YOU KNOW ABOUT F350 FULL-AUTOMATIC STRAIGHT EDGE BANDING MACHINE?

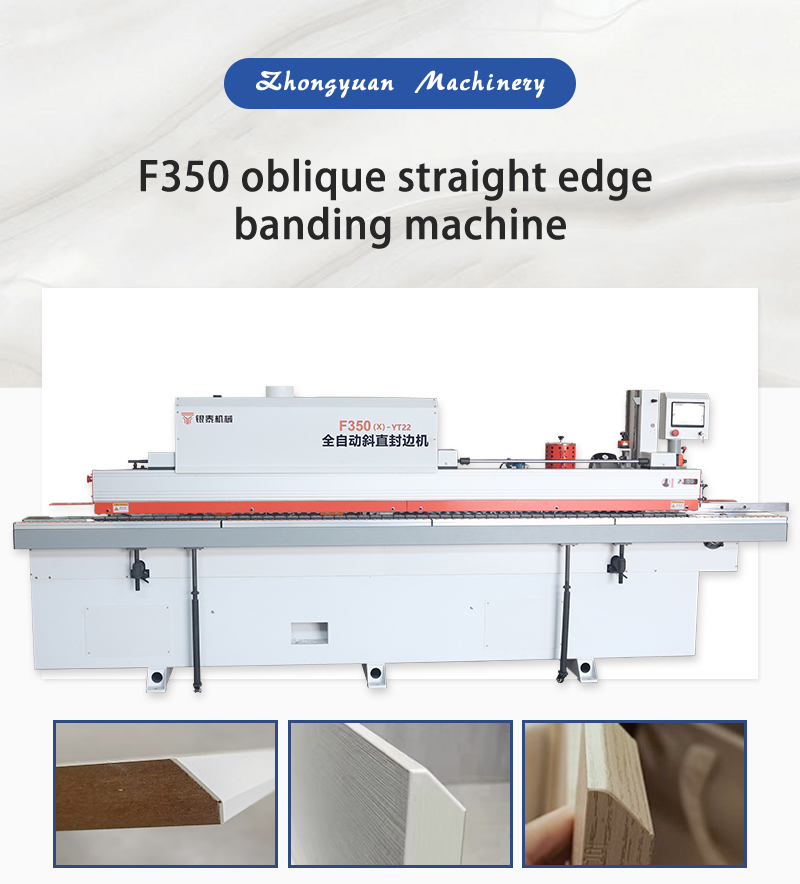

I'd like to recommend to you the top-selling models we have in May. This is F350 oblique straight edge banding machine. The voltage can be manufactured according to where you are going to use this machine. As long as you can tell us the shape, size, thickness of the plate that you are going to use, we will design the most suitable machine for you. Cause we have our own factory and we have professional R & D team. We will try our best to satisfy with your demand.

The internal structure of the machine is compact and precise, easy to transport, dedicated for special machines, and stable system.

It uses a glue pot and a glue cleaning device. The glue pot has a capacity of 2600ml. EVA and PUR glue can be used. One-button glue removal, automatic opening and closing, convenient glue replacement, 5-10 minutes of dissolution, and even glue coating of edge banding.

2L gas tank, better pneumatic pressure.

Automatic feeding device, conveying motor, stable and powerful operation, after putting in the plate, the milling motor directly mills the straight edge plate into a 45-degree oblique right angle, from milling to edge banding, one-time molding, intelligent operation and smooth, fast production speed and quality Stable, no manual operation required.

8 independent pressings, 4 straight surfaces, 4 beveled surfaces, the straight surfaces and beveled surfaces are independently pressed to ensure that the edge banding is tightly pressed on the board. The pressing is equipped with a scraping function to scrape off the excess hot melt glue on the board. At the same time, 2 auxiliary heating devices are added to make the edge banding more firmly bonded.

This machine uses diamond milling tools, larger crusher blades, 20mm blade diameter, flat milling without burrs, blades can be reused after grinding, diamond milling tools are faster and more durable, pneumatic lifting, easy to replace blades.

Smooth strip design, widened table, large boards can be easily processed.

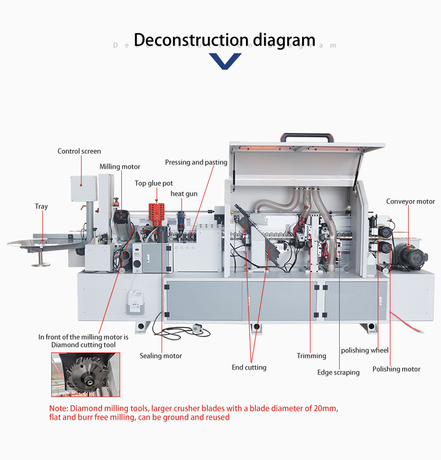

Detail:

Edge banding groove: The depth and height of the handgun adjustment are convenient and fast, and the front pressing wheel of the edge banding belt is synchronously adjusted with the groove cutting head, ensuring stable groove depth.

End to end alignment: Front to back alignment, frequency control, fast and accurate cutting of edge banding, ensuring end to end alignment effect.

Upper and lower edge trimming: Remove excess edge banding from the top and bottom of the board, ensuring that the upper and lower edges of the edge banding are flush with the surface of the board.

Edge scraping: Scrape off small ripples on the edge banding strip to make it flat, smooth, and have a natural curvature.

Automatic adhesive cleaning: Two areas of adhesive cleaning for edge sealing and trimming, not easy to stick, clean and tidy.

Polishing: Added cleaning function before polishing, which can better remove residual hot melt adhesive on the board.

Welcome to choose our edge banding machine, we will provide the best machine for you according to your demand. Not only the machine, but also our best service.
