Fully Automatic Straight Line Linear Edge Banding Machine EVA Glue Coating Woodworking Machinery Furniture Production

Fully Automatic Straight Line Linear Edge Banding Machine EVA Glue Coating Woodworking Machinery Furniture Production

Model:
ZY-358Max

Availability:

Quantity:



Inquire Add to Basket

Edge Banding Machine Linear Edge Banding Machine Straight Line Edge Banding Machine Fully Automatic Edge Banding Machine Woodworking Machinery Furniture Production

Product Description

Features

1.Pressure beam: adopts aluminum profile pressure beam design with strict dimensional tolerance, which increases its load-bearing capacity and durability.

2.Multiple limit positions: prevent edge banding strip from shifting or reversing, and ensure smooth belt feeding.

3.Pressure unit: three-pass pressing, adapting to the pressing needs of different angles, making the edge banding strips more firmly pressed.

4.End cutting:Quickly cut off the excess edge banding strips at both ends, and the two saw blades cooperate front and back to achieve high precision and high efficiency.

5.Finishing unit:Remove the excess edge banding strips on the upper and lower sides of the board, so that the upper and lower edges of the edge banding strips are flush with the surface of the board.

6.Polishing unit:Before polishing, adding a glue removal device can better remove the residual glue lines on the board, making the edge banding round, smooth and clean.

Paramenters

Edge banding thickness	0.8-2mm	Hot air gun	1.5KW
Board thickness	15-50mm	Head and tail motor	0.37KW × 2
Minimum board size	≥ 50 * 50mm	Rubber box heater	2kw
Conveying speed	15m/min	Refined motor	0.55kw × 2
Conveyor motor	1.5Kw32 shaft	Up and down polishing motor	0.55KW × 2
Rubber box motor	0.55kw	Total power	9kw

Workflow

Automatic gluing-Automatic tape feeding-Automatic tape breakage-Three pressings-End cutting-Fine-trimming-Wash up and down-Polishing up and down

Straight-Edge-Banding-Machine-Workflow-358Max

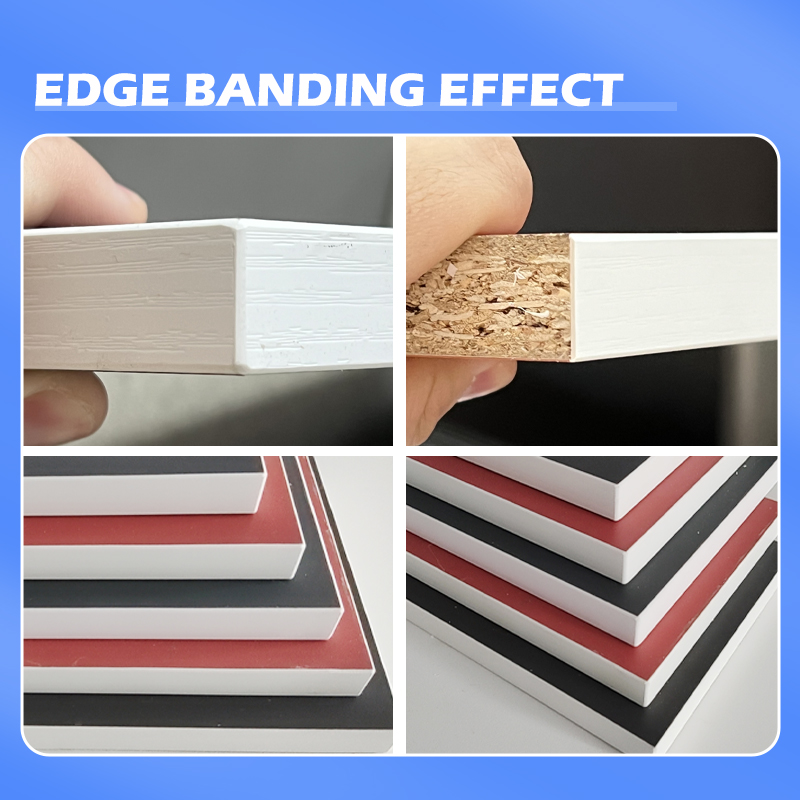

Effect

Straight-Edge-Banding-Machine-Effect-358Max（1）

Details

Straight-Edge-Banding-Machine-Detail-358Max（1）

4L large plastic pot

Large-capacity glue pot, no need to add glue frequently，

saving time and effort

Straight-Edge-Banding-Machine-Detail-358Max（2）

Side-standing conveyor plates

The conveyor plate is a side vertical plate structure,which is more stable and firm

Straight-Edge-Banding-Machine-Detail-358Max（3）

Widen the countertop

Large boards can also be easily processed
